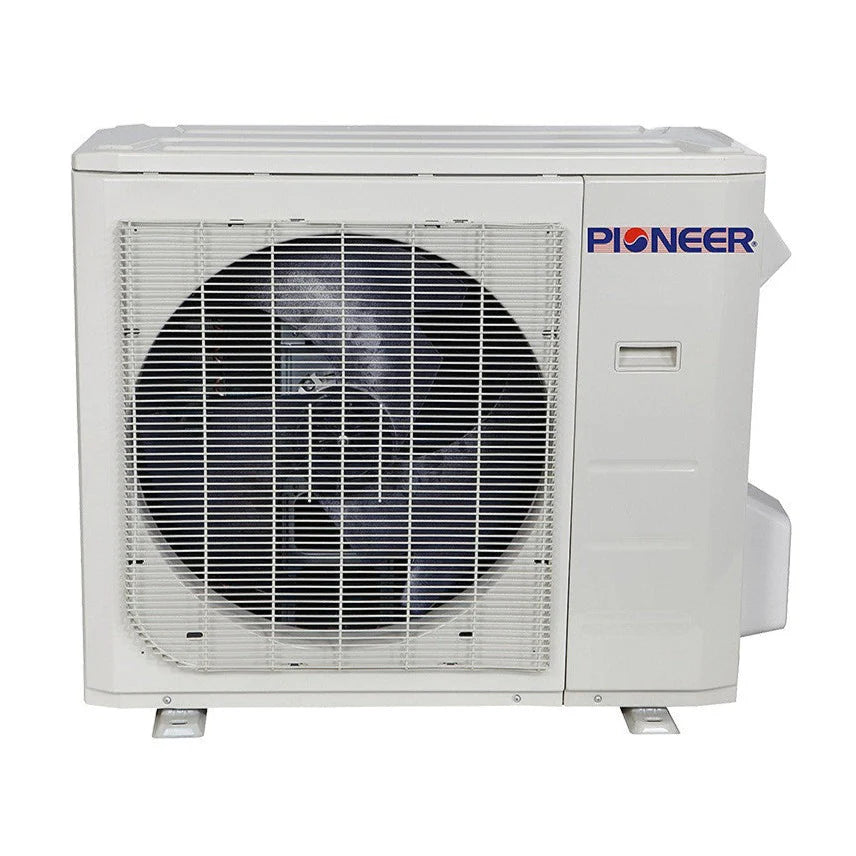

36K BTU Multi Split Air Conditioner and Heat Pump E1233
Sale price
$39.50
Regular price $399.00
Skip to product information
36K BTU Multi Split Air Conditioner and Heat Pump E1233
Sale price
$39.50
Regular price $399.00
Shipping calculated at checkout.
Summary
- OUTDOOR SECTION ONLY for Quad (4) Zone
- Ultra High Efficiency DC Inverter++ version
- Cooling capacity: 36,000 BTU/H Nominal (Range: 8,789 MIN ~ 40,288 MAX) with 21.8 SEER/10.5 EER efficiency
- Heating capacity: 37,000 BTU/H Nominal (Range: 6,900 MIN ~ 46,624 MAX) with 11.5 HSPF efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Factory charged for up to 25’ line set per circuit
- Whisper Quiet Operation
Refrigerant
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.
PRODUCT SPECIFICATIONS:
| Product Dimensions | 37.2'W x 16.2'D x 31.8'H |
| Power Supply | 208-230V, 60Hz, 1Ph |
| Communication Protocol | Current Loop |
| Min-Max Load Attached | 24,000-48,000 BTU/h |
| Cooling Rated Capacity | 36,000 BTU/h |
| Cooling Capacity Range | 8,789~40,288 BTU/h |
| Cooling SEER (Ductless) | 21.8 BTU/w |
| Heating Rated Capacity | 37,000 BTU/h |
| Heating Capacity Range | 6,900-46,624 BTU/h |
| Heating HSPF (Ductless) | 11.5 BTU/w |
| Refrigerant Type | R410a |
| Suitable Area | 1,200-1,600 Sq.F |
| Sound Level | 62.5 dB(A) |
| Weight | 169 lbs |
| Certificates | Energy-Star Certified |
- Technical Brochure
- User Manual
- Installation Manual
- Service Manual
- AHRI Certificate
- Energy Guide
